PILLOWSHRINKSACHETS

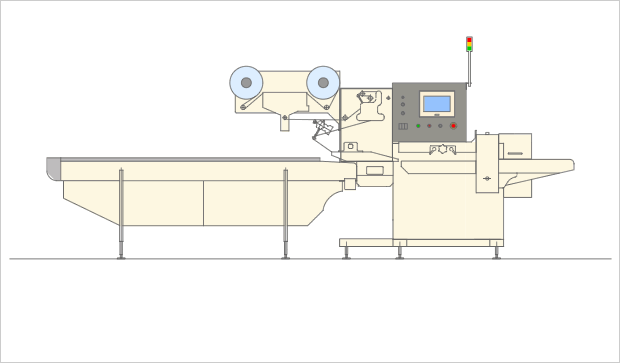

Horizontal Pillow Wrapping Machine :  Model  NEO06-415
伺服电动机驱动。横向封口器高度不能调整的类型,建议在没有高度不同产品兼用时使用。
img: NEO6-415
SPEC
适用商品 布丁,酸奶等
可包装尺寸 Max. 300packs / min.
主发动机 200V750W(AC 伺服电动机)3台
电源 3相200V4.5kW(收缩管道用另有其他要求)
薄膜宽度 450mm
切割尺寸 90~470mm
根据包装标准,电容量等会不同,以上指标仅作为大致的参考。
Feature of Optional Items
Box Motion Hermetic End Sealer Flex Length Conveyor Electrostatic Sealer Micro Pin Hole Roller Device One Touch Detachable Scrap Film Winder Automatic Film Splicer
AUTOFEEDER
StarWheel Devider (For multi pce.)StarWheel Devider (For single pce.)Screw DividerAutfeeder with Air Cylinder PusherBar Type AutofeederModel BDA-SEModel BDA-M1B1Model BDA-M
